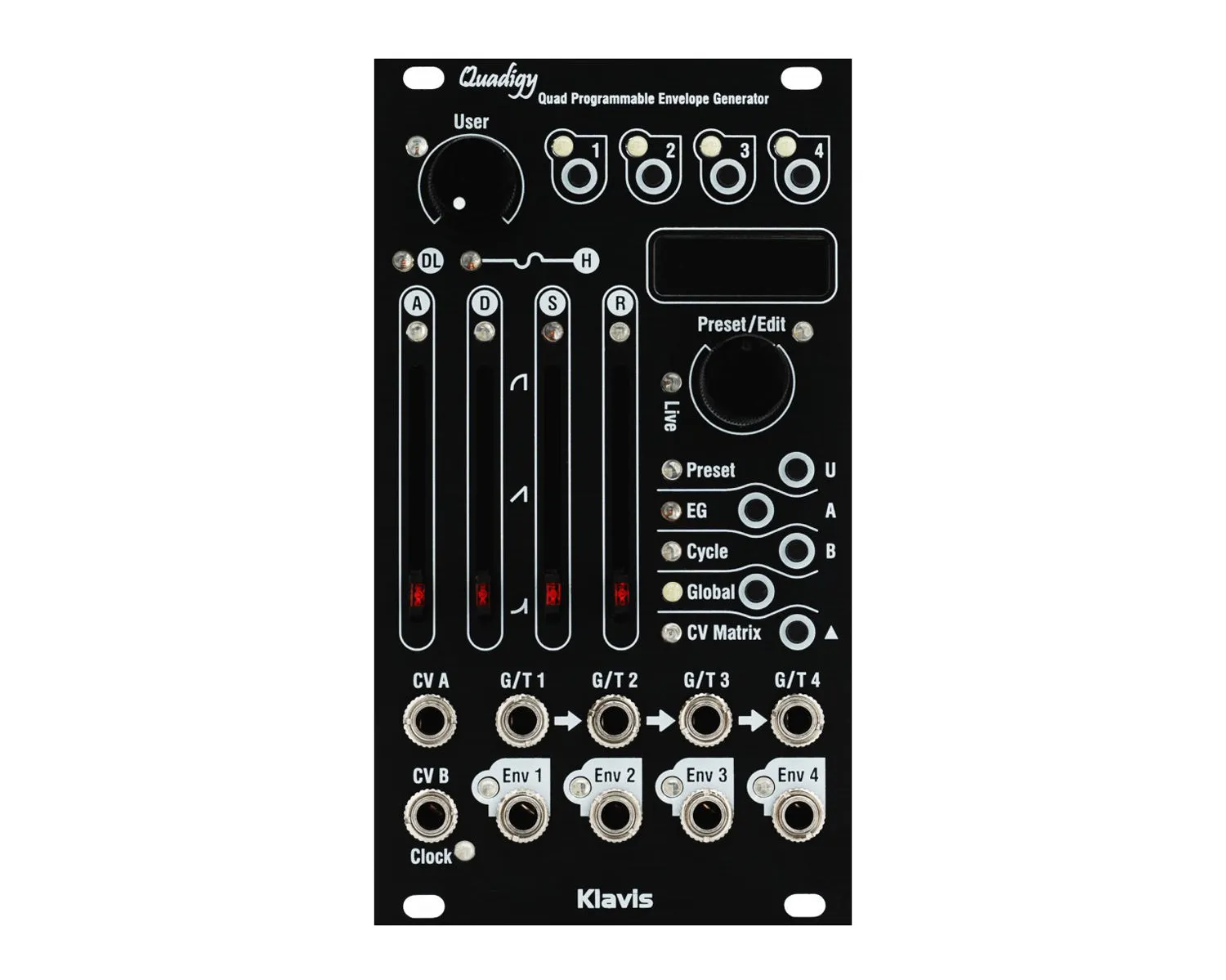

The Quadigy is a complex envelope generator focused on live play. The goal is to allow you to set up rich, interactive and dynamically evolving envelopes without the risk of breaking up a subtle and intricate patch once on stage. This is done by offering two main modes, one where full control is available and a Live mode where only the settings that are sensible using on stage are accessible.

Features:

• Quad 7-stage envelopes:
• Pre-delay
• Hold
• Attack
• Punch
• Decay
• Sustain

• Release

• Continuous curve shape setting

• Inversion
• Independent output level
• Cycle capability with auto fit-to-clock
• Elastic time stretching
• 5 internal clocks with tap tempo
• External clock control
• Multiply/divide and offset
• Individual cycle ext. control
• 32 presets with naming
• External preset control via CV/Trig
• Simultaneous 156-point CV matrix
• Morphing on presets and CV Matrix
• Multi-editing for polyphonic uses
• Live mode for easier/safer control
• Graphical display
• Real-time envelope stages LED indication
• Settings restored after power cycle
• Easy firmware update via an audio file
• Skiff-friendly and compact module

Video:

Product Specs

• Item Number: 28079
• Make:
• Model:
• Condition:
• Finish: Black
• Categories: ⇒
• Function:
• Made In: Belgium
• MPN: QG-MBK
• Modular Grid: Eurorack
• Dimensions*: 14 HP 21 mm deep
• Power*: 24 mA 12V 10 mA -12V 40 mA 5V

* User contributed details
