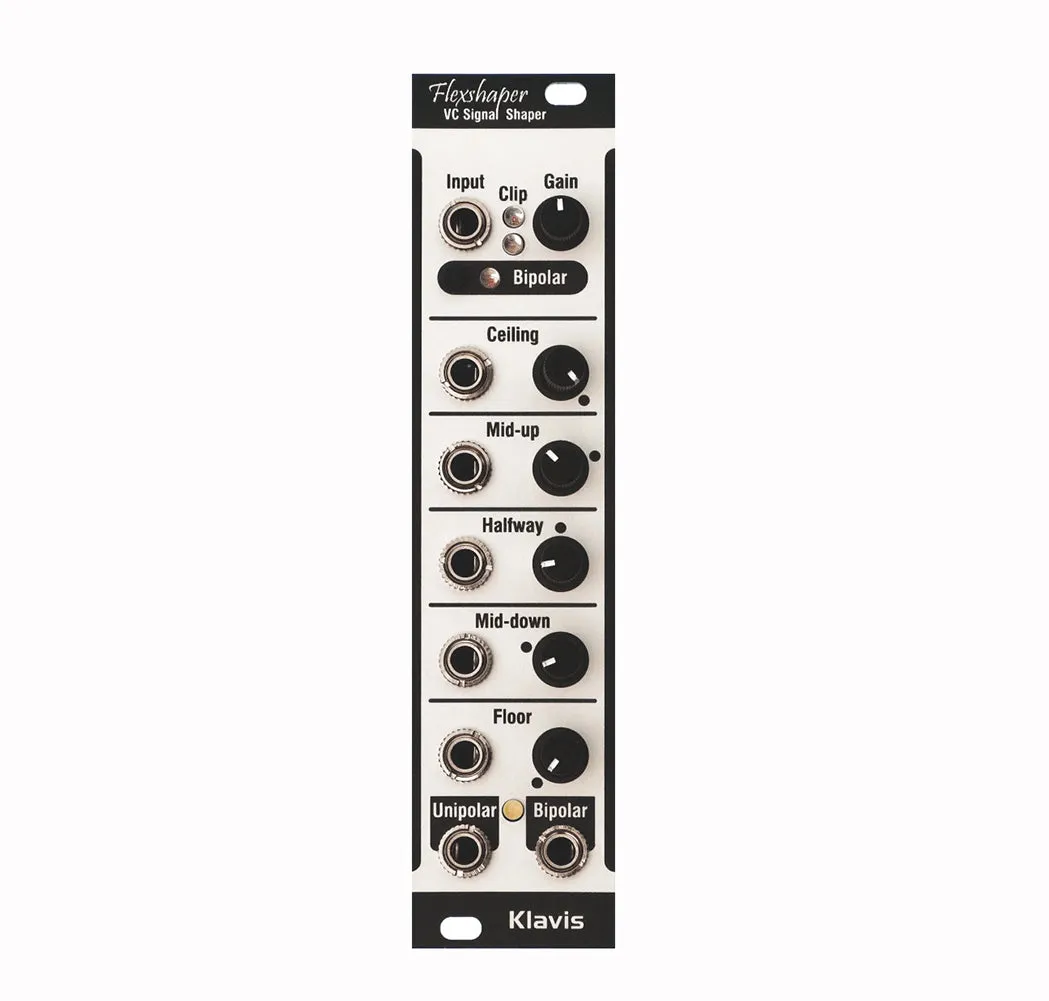

The Flexshaper is a 6HP eurorack module based on an element of the Oberheim® Matrix synthesizer called the "Tracking Generator." This signal processor was part of the modulation matrix and meant to be virtually inserted between modulation sources and destinations in order to change the shape of the controlling signal. The Flexshaper applies the same concept using the same 5 shaping points. However, it goes beyond Oberheim’s implementation on two main aspects:
- It goes fast enough to process signals at full audio rate
- The 5 points are dynamically adjustable (CV) in real-time
The Flexshaper can process adequately bipolar and unipolar Eurorack signals.
Features * Process from DC to full audio range * Unipolar/bipolar input mode switch * Nominal & clip level LEDs * Output signal LED * Input gain setting for nominal level setting, * allows clean flat clipping when overdriven * Five manual voltage mapping potentiometers * Five CV control of the voltage mapping points * Simultaneously active unipolar and bipolar outputs * Firmware update via a simple audio file * Compact and skiff-friendly module
Video:
Product Specs
- Item Number: 13534
- Make:
- Model:
- Condition:
- Finish: Silver
- Categories: ⇒
- Function:
- Made In: Belgium
- MPN: FS-MSL
- Modular Grid: Eurorack
- Dimensions: 6 HP 21 mm deep
- Power: 6 mA 12V 7 mA -12V 32 mA 5V
