A surprisingly handy module and another great way to fill those last remaining gaps in the 1U row.

Use this module to tap into the 3-pin LINK connector used in several Intellijel products, including Mixup, Pedal I/O and the Palette and 2nd Generation Audio Jacks Board in a 7U case.

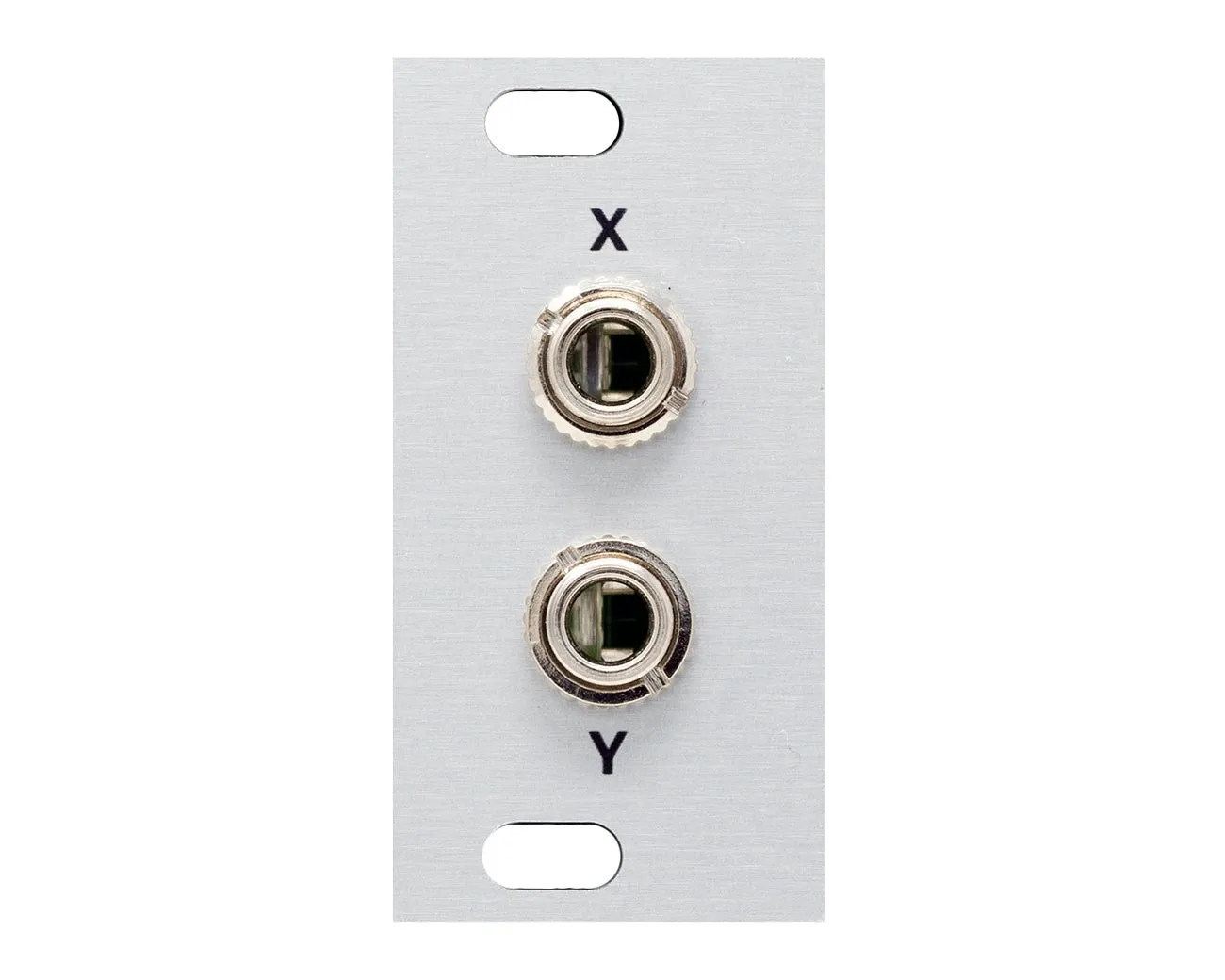

It uses two 3.5mm TRS jacks, which accept insert cables to provide send/return capability to a pair of Pedal I/O’s, or additional stereo inputs (or outputs) to a pair of Mixups, or one of each. It can also be used as a single send/return pair where  X is the send and Y is the return (great when you have already used the TRS jacks on your Palette for audio output and you need a compact way to send/return from the pedal i/o)

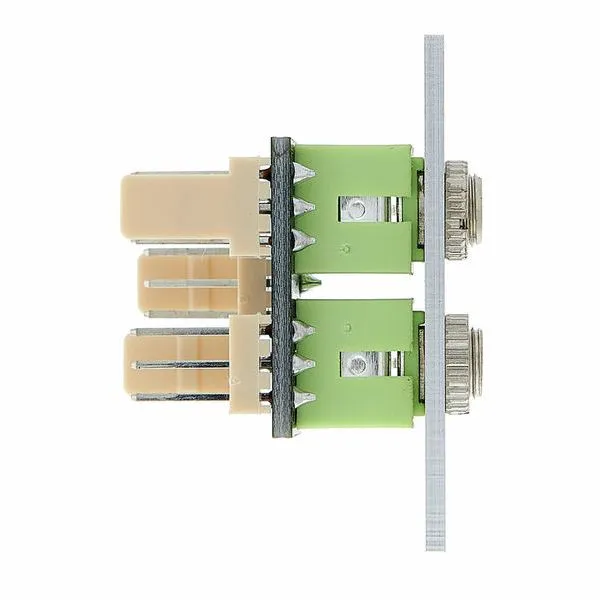

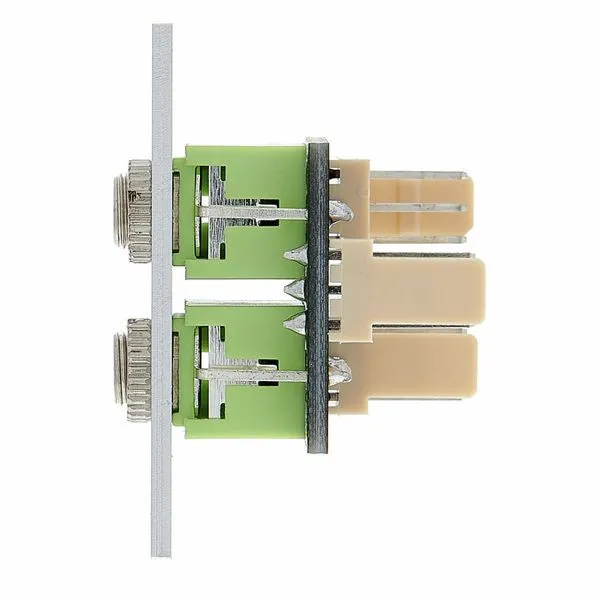

A third 3-pin Link connector on the back panel allows the X and Y jacks to access the L/R (or Send/Return) jacks on a single connected module or case without needing a stereo cable.

• Size: 4HP
• Depth: 24mm
• Power: n/a

Product Specs

• Item Number: 15365
• Make:
• Model:
• Condition:
• Finish: Silver
• Categories: ⇒
• Function:
• Made In: Canada
• MPN: XYIO-1U
• Modular Grid: Eurorack
• Dimensions: 4 HP 24 mm deep
• Power: Module does not draw current
