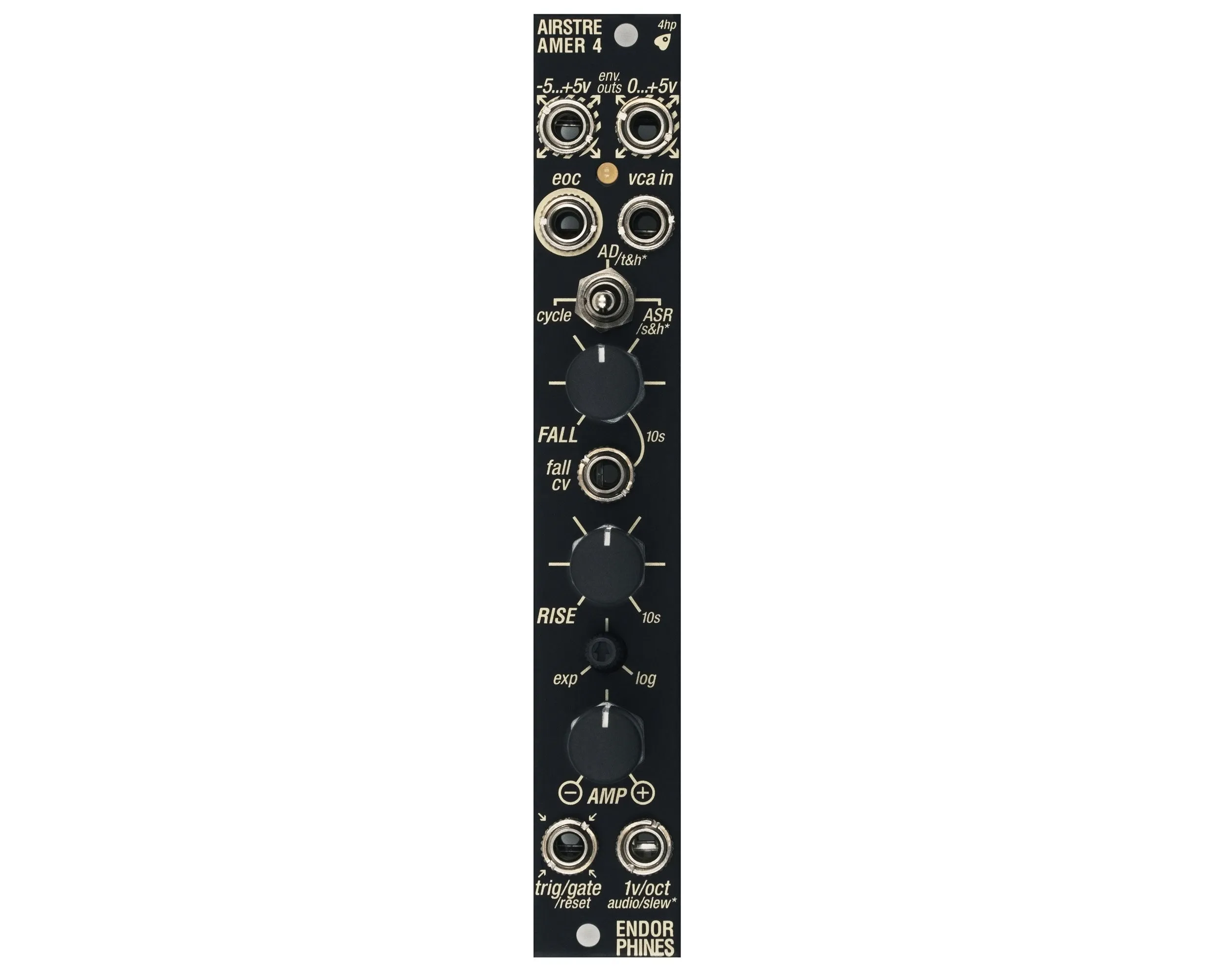

Ultra Slim Envelope Generator with Looping, ASR and AD Modes.

• CV control over fall (decay / release)
• Continuously variable shape over both slopes without stretching the slope’s duration in time.
• Low aliasing CV generation, 224 kHz sample rate.
• 1 v/oct input, bipolar and unipolar outputs, end of cycle output.
• Audio rate oscillation in cycle mode allows you to utilize it as an oscillator.
• Polarizer knob with additional VCA input scales the envelope and inverts it when CV goes to negative voltages, allowing for compact sidechain envelope solution without the need for external mixers / inverts / offset generators.
• Slew limiter, S&H, T&H processing for external CV sources

Video:

Product Specs

• Item Number: 23383
• Make:
• Model:
• Condition:
• Finish: Black
• Categories: ⇒
• Function:
• Made In: Spain
• MPN: E-AS4 B
• Modular Grid: Eurorack
• Dimensions: 4 HP 26 mm deep
• Power: 60 mA 12V 14 mA -12V ? mA 5V
