Product Details
＋
Description

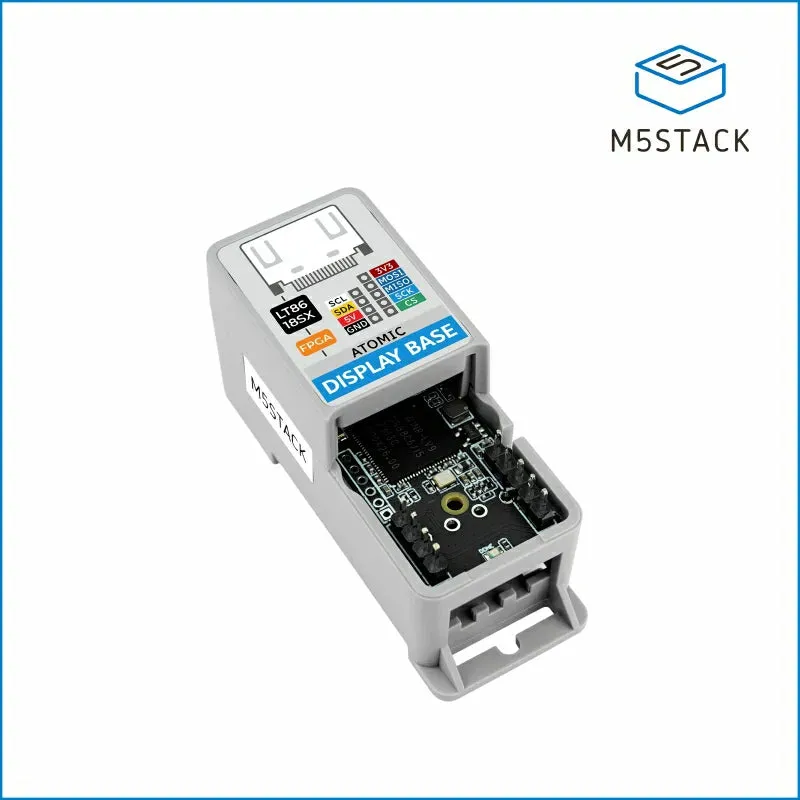

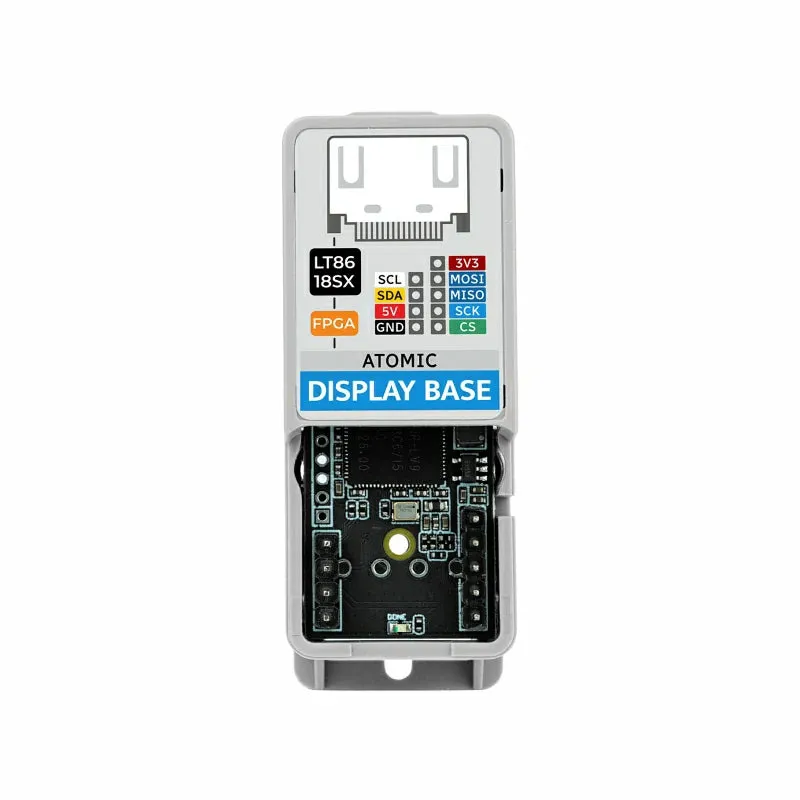

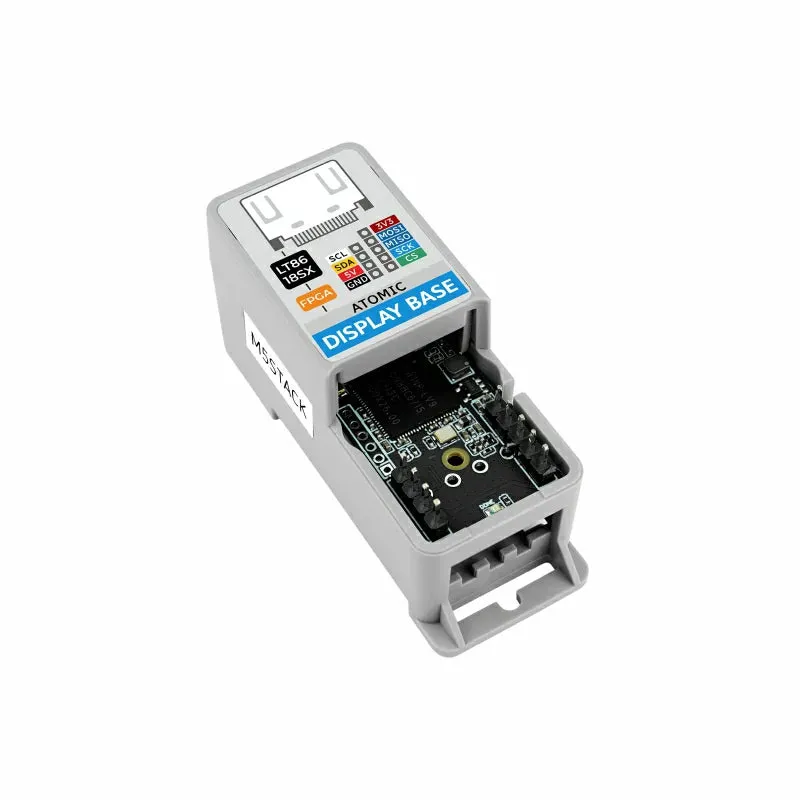

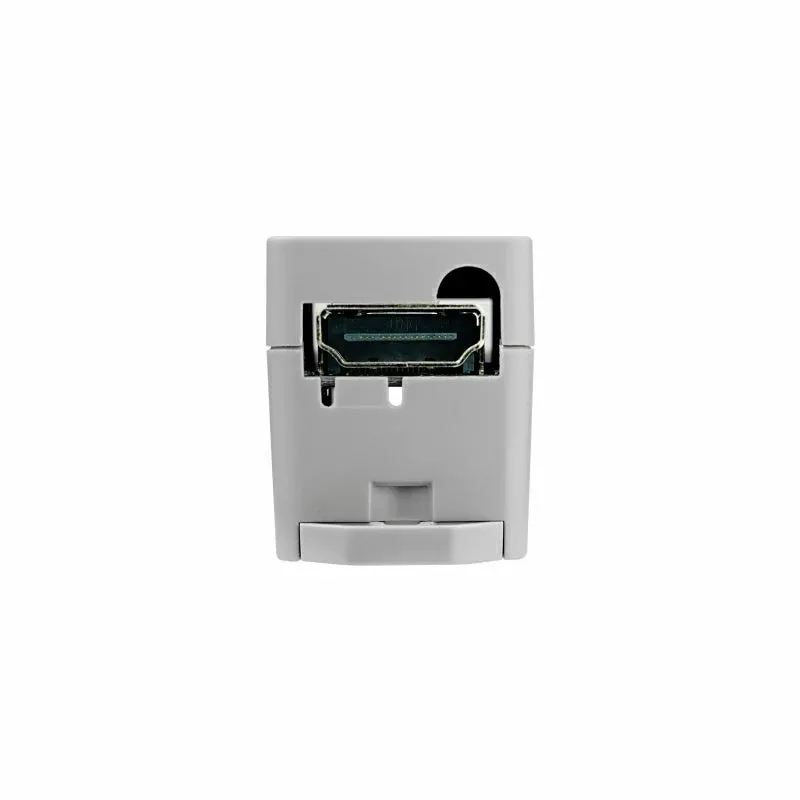

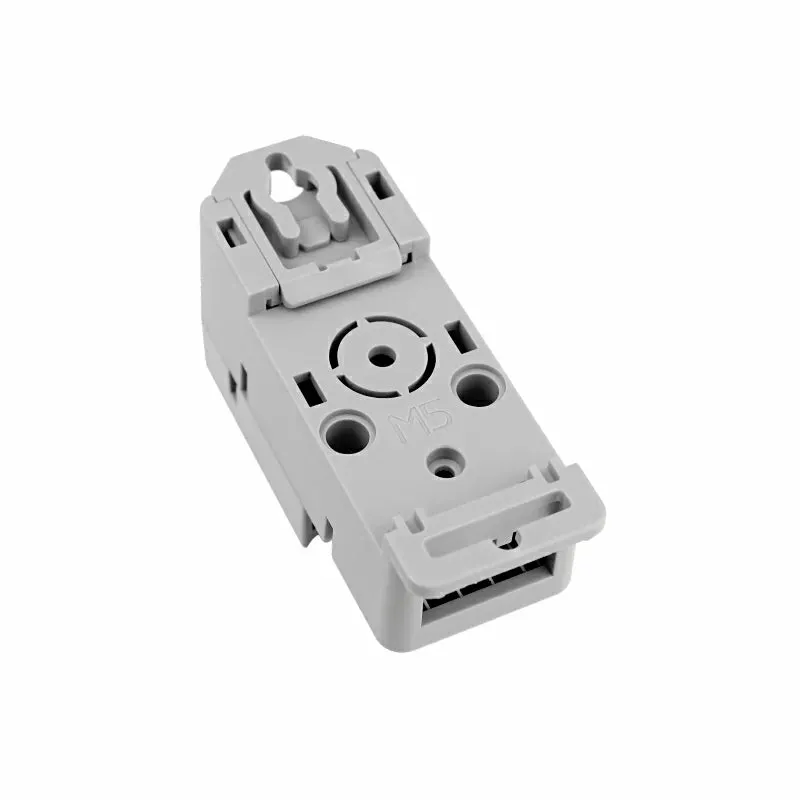

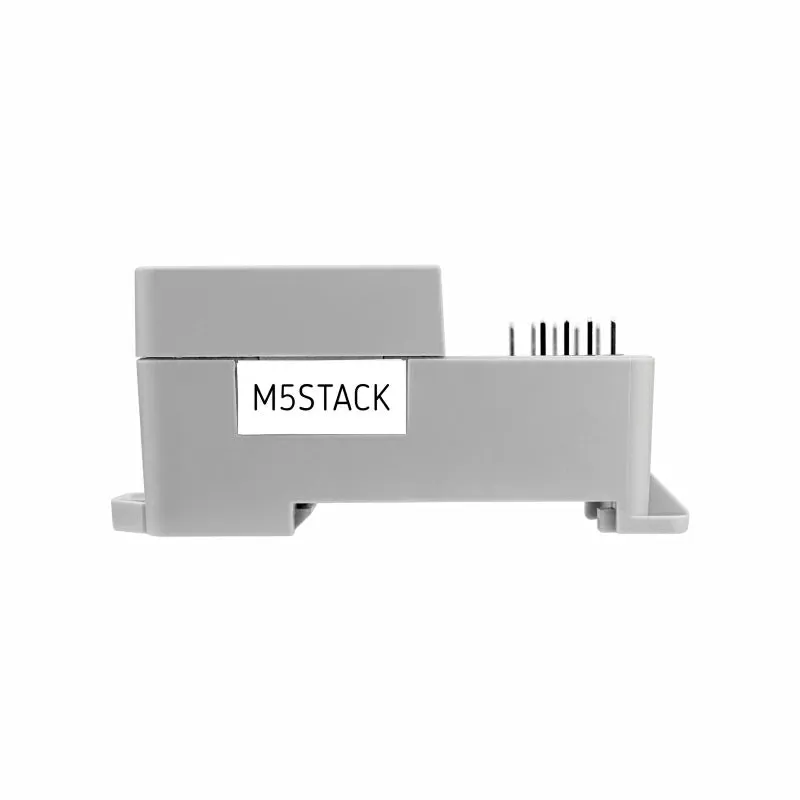

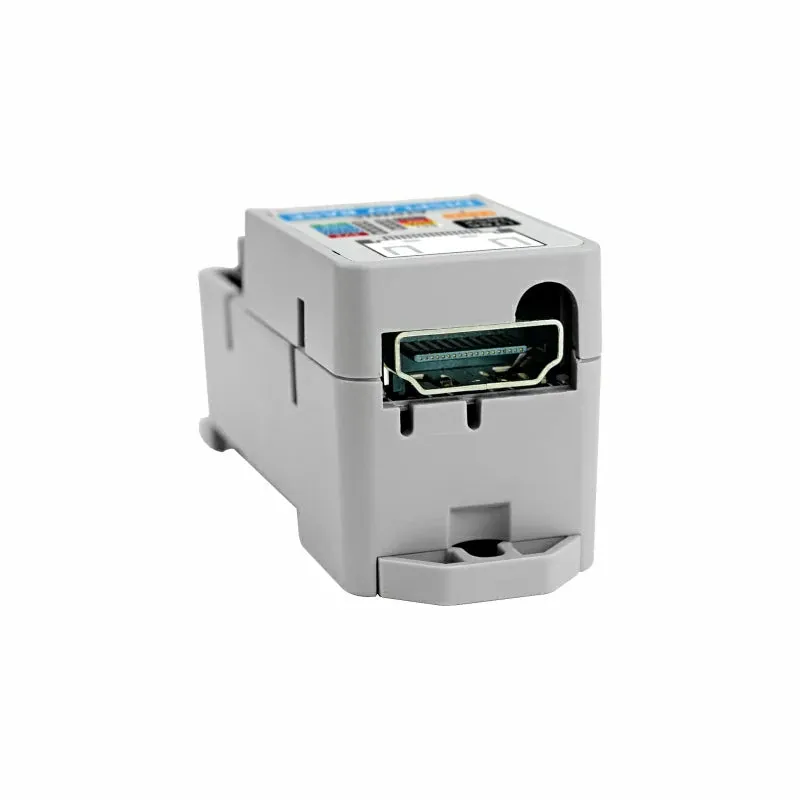

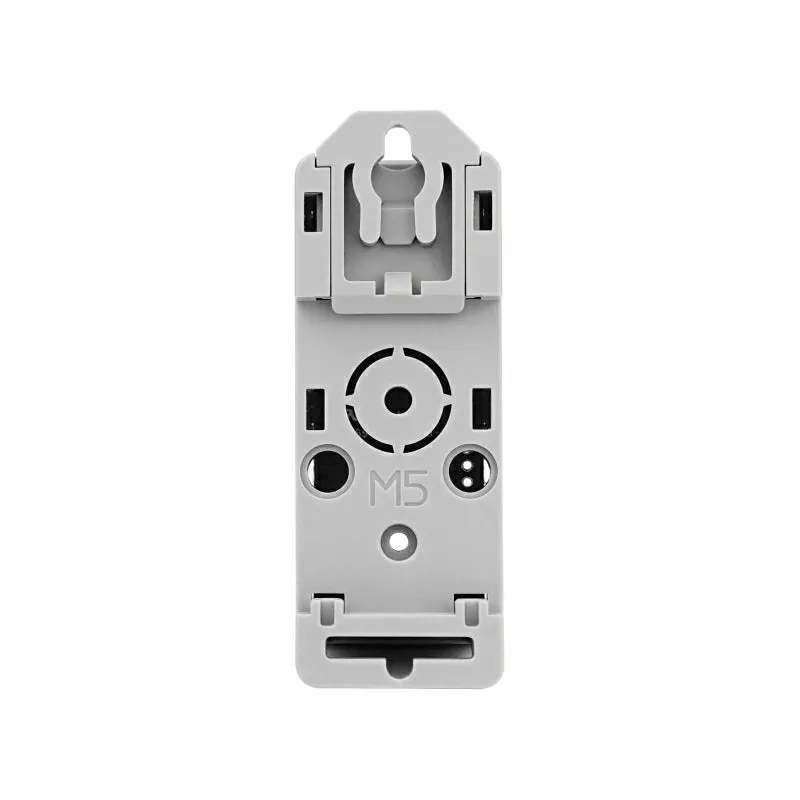

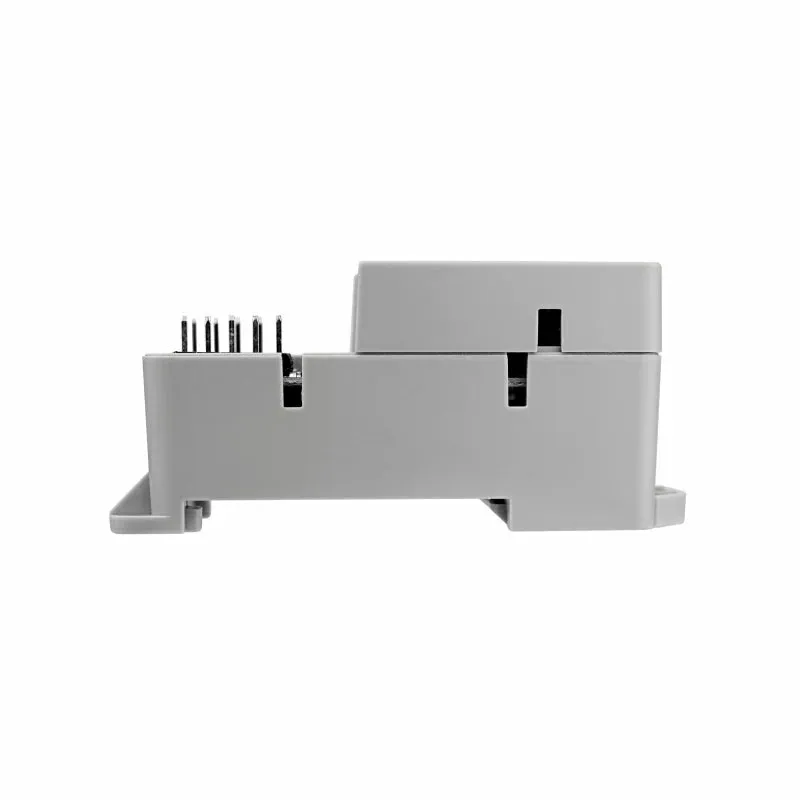

Atomic Display Base is an HDMI high-definition display driver unit that uses FPGA to emulate traditional SPI TFT-LCD data output, supporting up to 720P (1280x720) image output. It achieves wide compatibility for HDMI signal output through a dedicated RGB-to-HDMI chip. Users can pair it with the ATOM series hosts to meet different memory and application requirements. The Atomic Display Base can replace the traditional PC control solution for display panels, providing a more cost-effective option. It is suitable for applications in industrial control displays, smart home information screens, education and conference presentations, and remote monitoring displays.
Note
The Atomic Display Base requires a display with adaptive resolution scaling. Some displays without adaptive resolution support may experience display issues.
Features

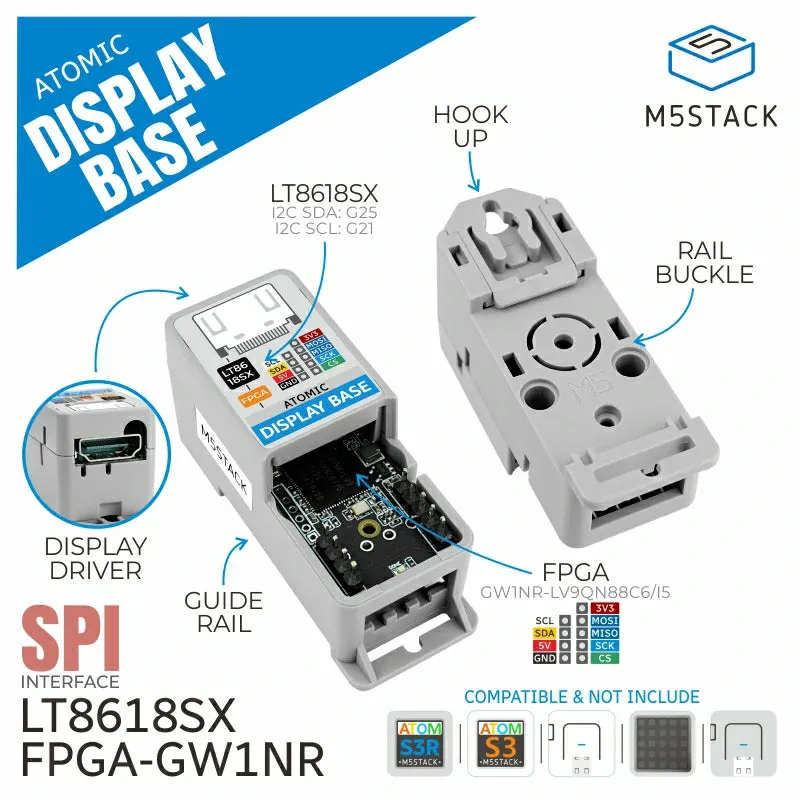

- Uses FPGA (Gowin GW1NR-9C)
- Built-in LT8618SX RGB-to-HDMI chip (supports 24-bit color depth)
- SPI interface (FPGA) I2C interface (LT8618SX)
- Maximum 720P (1280x720) image output
- Various output modes with optimized frame rates of up to 12 ~ 16 FPS
- Development platforms: Arduino, ESP32-IDF (UIFlow not yet supported)
Contents

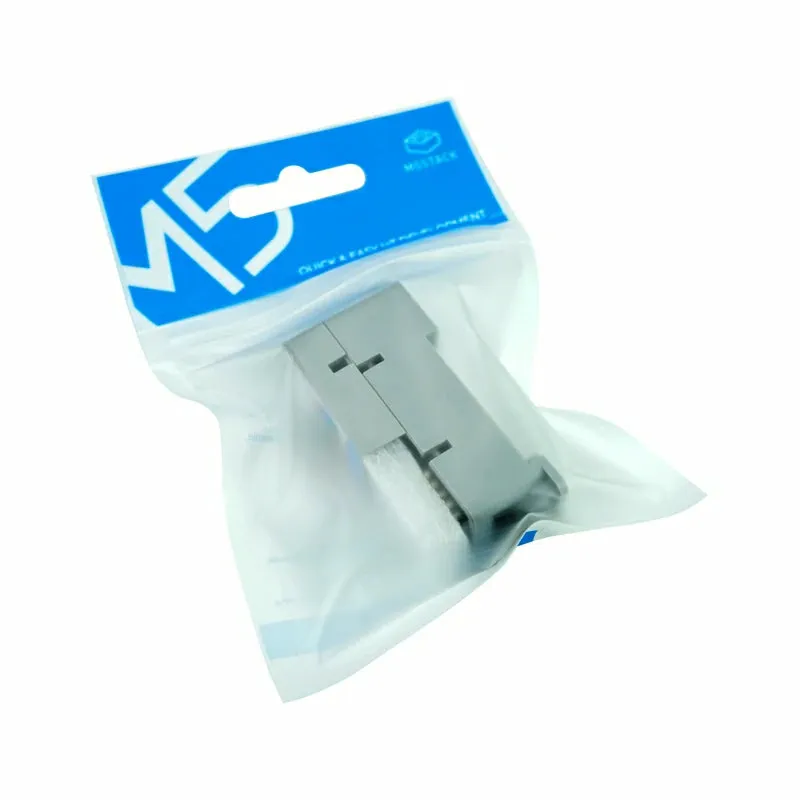

- 1x Atomic Display Base
Applications
- Display input signal source
- HD data dashboard
Specifications
| Specification | Parameter |
|---|---|
| FPGA | Gowin GW1NR-9C |
| LT8618SX | RGB-to-HDMI chip, supports 24-bit color depth |
| Max Output Size | 720P (1280x720) |
| Output Frame Rate | 1280x720 60Hz |
| Product Size | 64*24*29mm |
| Package Size | 136*92*30mm |
| Product Weight | 15.2g |
| Package Weight | 17.3g |
