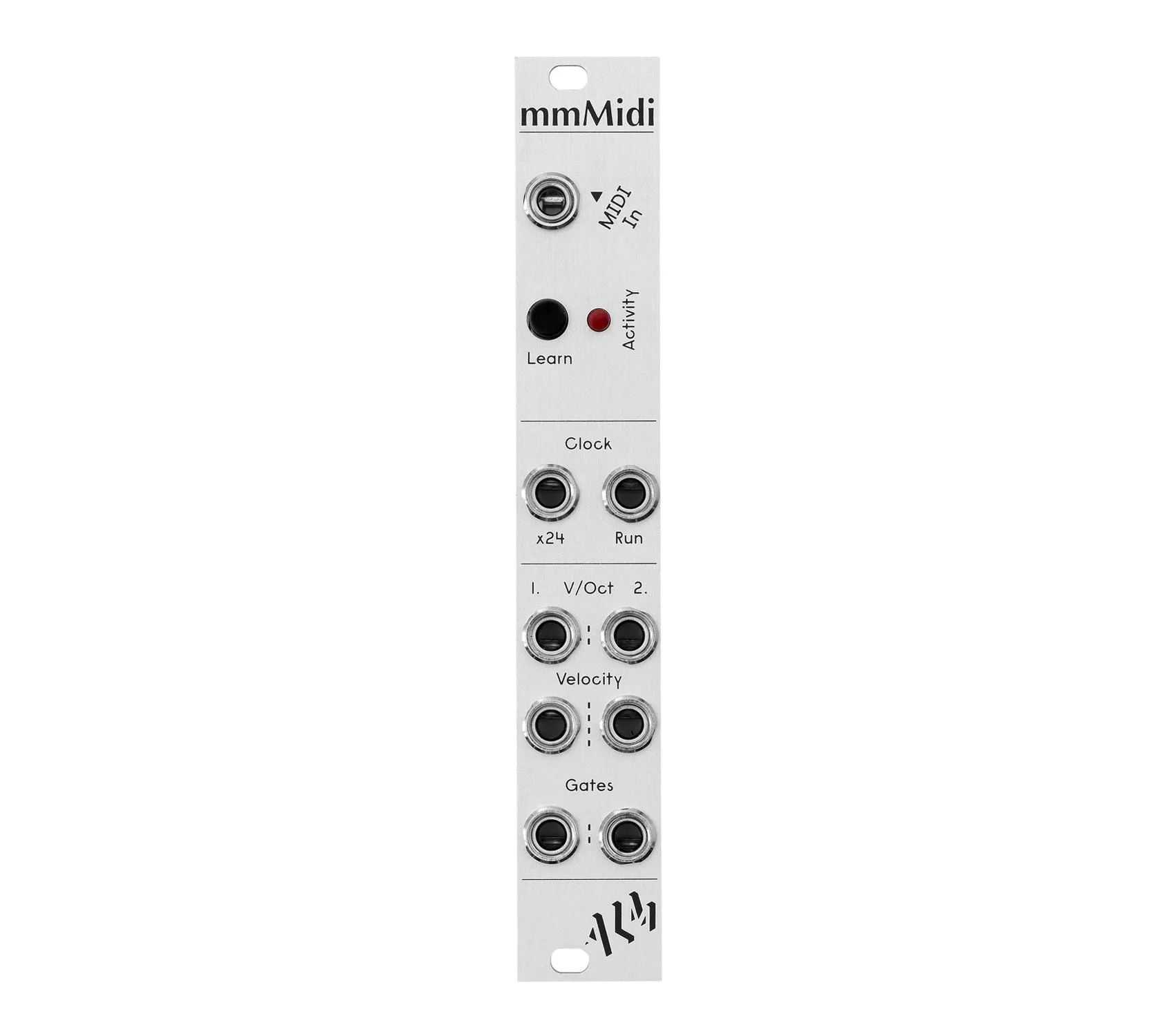

The mmMidi is a simple & compact 4HP MIDI interface for Eurorack. It translates both MIDI clock and 2 Channels of MIDI note, velocity and gate information to corresponding voltage control signals for your modular synthesiser. The mmMidi is quick to set up and requires minimal configuration. Easily MIDI control a couple of synth voices, sync clocks to MIDI clock and trigger drum or sample modules with the optional expander.

Power: 12V 30ma / -12V 0ma Size: 4HP Depth: 38mm Resolution: 12Bit 0-8V via CV outputs. 5v via gates

Video:

Product Specs

• Item Number: 13400
• Make:
• Model:
• Condition:
• Finish: Silver
• Categories: ⇒
• Function:
• Made In: United Kingdom
• MPN: ALM023
• Modular Grid: Eurorack
• Dimensions*: 4 HP 27 mm deep
• Power*: 30 mA 12V 0 mA -12V ? mA 5V

* User contributed details
